Clamping capacity 5''-23'' Max wheel diameter 1.000 mm (39,5") Max wheel width 370 mm (14,5") Bead breaker force 750 Kgf (1.655 lbf) Turntable speed 8 rpm Working pressure 8-10 Bar (116-145 psi) 3-Phase el. motor 0,55 kW (0,75 Hp) Net weight 155 Kg (340 lbs)

Clamping capacity 5''-23'' Max wheel diameter 1.000 mm (39,5") Max wheel width 320 mm (12,5") Bead breaker force 2.800 Kgf (6.175 lbf) Turntable speed 8 rpm Working pressure 8-10 Bar (116-145 psi) 3-Phase el. motor 0,55 kW (0,75 Hp) 1-Phase el. motor 0,75 kW (1,0 Hp) Net weight 150 Kg (330 lbs)

Clamping capacity 10"-21" External clamping 10"-18" Internal clamping 13"-21" Max wheel diameter 1.000 mm (39,5") Max wheel width 320 mm (12,5") Bead breaker force 2.800 Kgf (6.175 lbf) Turntable speed 8 rpm (8-15 rpm 2sp) Working pressure 8-10 Bar (116-145 psi) 3-Phase el. motor 0,55 kW (0,75 Hp) 1-Phase el. motor 0,75 kW (1,0 Hp)

CLAMPING CAPACITY 10''-23" EXTERNAL CLAMPING 10''-20'' INTERNAL CLAMPING 13''-23'' MAX WHEEL DIAMETER 1.000 mm (39,5") MAX WHEEL WIDTH 320 mm (12,5") BEAD BREAKER FORCE 2.800 Kgf (6.175 lbf) TURNTABLE SPEED 8 rpm (8-15 rpm 2sp) WORKING PRESSURE 8-10 Bar (116-145 psi) 3-PHASE EL. MOTOR 0,55 kW (0,75 Hp) 1-PHASE EL. MOTOR 0,75 kW (1,0 Hp)

CLAMPING CAPACITY 10''-23'' EXTERNAL CLAMPING 10''-20" INTERNAL CLAMPING 13''-23'' MAX WHEEL DIAMETER 1.000 mm (39,5") MAX WHEEL WIDTH 320 mm (12,5") BEAD BREAKER FORCE 2.800 Kgf (6.175 lbf) TURNTABLE SPEED 8 rpm (8-15 rpm 2sp) WORKING PRESSURE 8-10 Bar (116-145 psi) 3-PHASE EL. MOTOR 0,55 kW (0,75 Hp) 1-PHASE EL. MOTOR 0,75 kW (1,0 Hp)

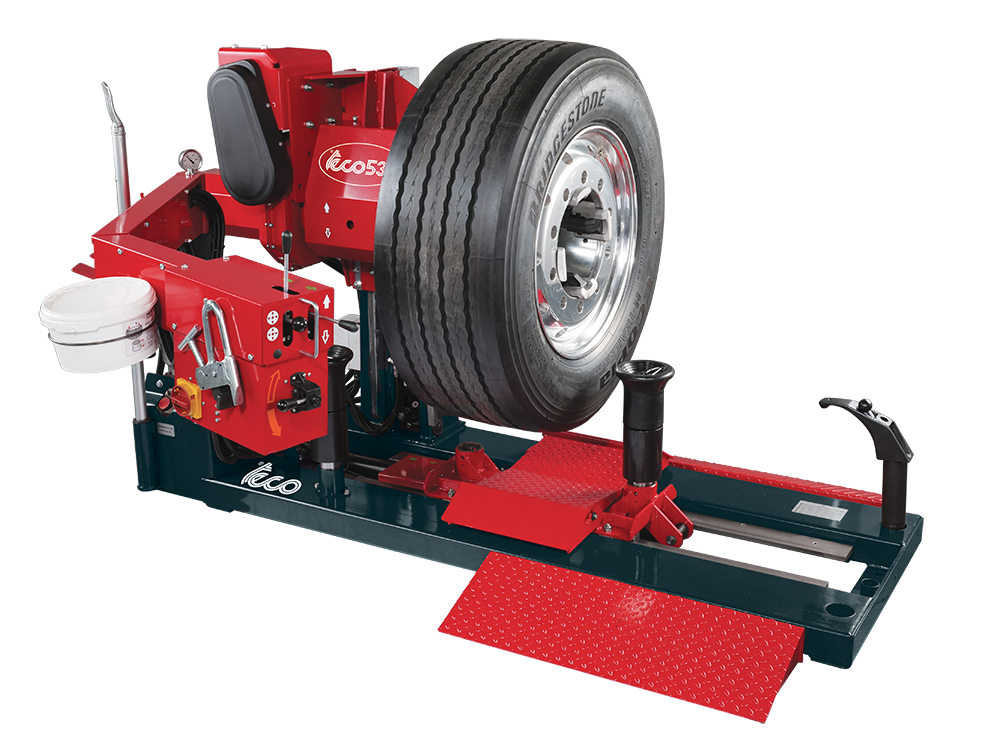

Technical data MAX WHEEL WIDTH 695 mm (30") MAX WHEEL DIAMETER 1400 mm (55'') HYDRAULIC CONTROL UNIT MOTOR 0,75 kW (3Ph) - 1.3 kW (1Ph) TURNTABLE MOTOR 1.1 kW (3Ph) - 1.1 kW (1Ph) MAX WHEEL WEIGHT 1.1 kW (1,47 Hp) BEAD BREAKING FORCE 14000 N MAX TORQUE DELIVERY 2200 Nm VOLTAGE (3Ph) 400/230V - 3Ph - 50/60Hz VOLTAGE (1Ph) 230V - 1Ph - 50/60Hz

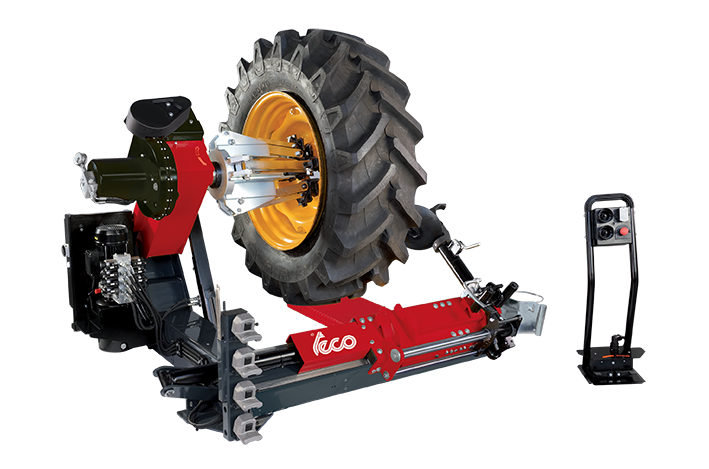

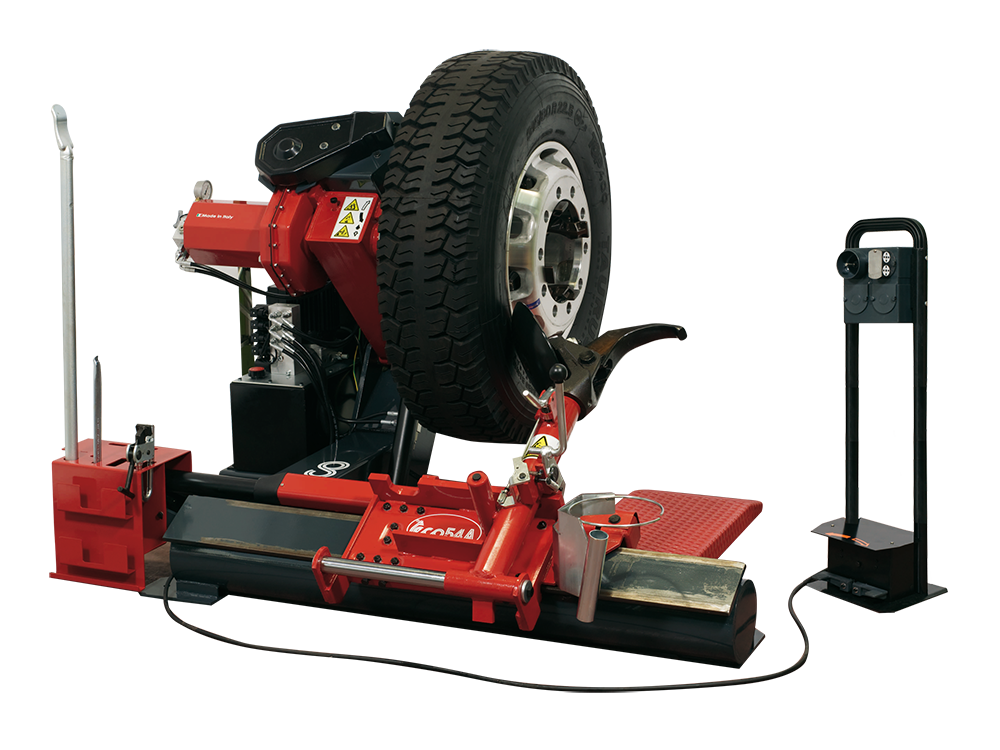

RIM CLAMPING CAPACITY 14"-46" (56" with SE-2) CENTRAL HOLE CLAMPING 100-995 mm (4"-39") MAX WHEEL DIAMETER 2300 mm (90,5") MAX WHEEL WIDTH 1065 mm (42") MAX WHEEL WEIGHT 1200 Kg (2645 lbs) HYDRAULIC UNIT MOTOR 1,5 kW (2,0 Hp) CHUCK 3-PHASE MOTOR 1,3-1,85 kW (1,7-2,5 Hp) POWER SUPPLY 230-400V/3ph/50-60Hz NET WEIGHT 760 Kg (1675 lbs)
